C08/C12

Combination Fiber Mooring Line

Product: C08/C12

Structure: 8 Strand/12 Strand

(Core/Cover): Polyester & Superpolymer

Standard: ISO 2307:2019


download


This rope features a perfect balance of high-strength polyester and superpolymer material twist-woven together. This product fully combines the advantages of the two materials, making it a cost-efficient rope. The breaking strength and wear resistance are equivalent to that of a 100% polyester rope while weighing 20% less. C08 / C12 are round and solid ropes, with a smooth surface and easy operation, making them very efficient and cost-effective ropes.

Feature:





Technical Information:

  • Specific Gravity:0.99-1.1
  • Construction:8 Strand / 12 Strand
  • Melting Point:414°F (212°C)
  • Critical Temp:300°F (149°C)
  • Elongation At 30% Break:9.7%
  • Water Absorption:3-5%

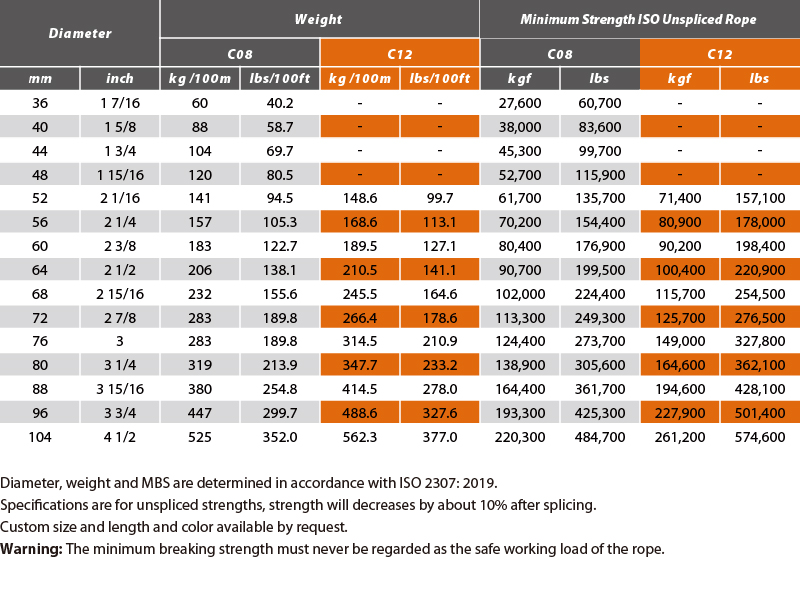

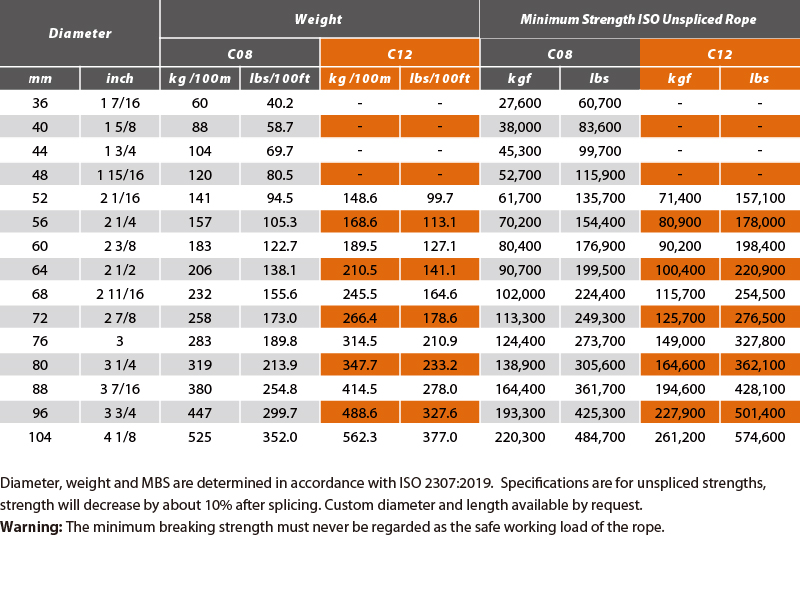

Specification:




Application:

  • General working line
  • Mooring tails
  • Primary mooring line
  • Secondary mooring lines




Mooring lines
Mooring lines include primary mooring lines and mooring tails. The primary mooring line which requires high strength and light weight is used to fix the vessel on the shore; The mooring tails that connect the primary line and the mooring bollard should have good elasticity and wear resistance, provide the extension performance for the mooring system, and minimize the impact load caused by wind or waves.


The primary mooring lines and mooring tail can be connected with each other through shackles, splicing or cow hitch, which is convenient for releasing, mooring and replacing mooring tails, and prolongs the service life of the whole mooring system. The best way to improve the stability and efficiency of the mooring system is to select the most suitable mooring line according to the needs.




Rope construction comparison
8-Strand: A braided construction with good strength and elongation. This construction can disperse wear without excessive damage to fibers, so it has good wear resistance.

12 Strand: The hollow single braided construction is very easy to splice, with higher strength and lower elongation. This construction can withstand more internal fiber damage and strength loss caused by cyclic load.
