MOORING ROPE / TAIL / ANCHOR LINE

OPTIMA™ 5 Premium HMPE Synthetic Fiber Rope

The OPTIMA™ Series is our premium rope line created by ROPERS, crafted from high-quality Ultra-High Molecular Weight Polyethylene (HMPE).

OPTIMA™ 5 is made of premium Ultra-High-Molecular-Weight-Polyethylene (HMPE) fiber and is the highest-strength synthetic fiber rope available made by ROPERS.

Our OPTIMA™ 5 features a bright two-color anti-twist identification design which can effectively prevent rope distortion during operation, thereby avoiding loss of rope-strength.

The OPTIMA™ 5 ropes are suitable for all types of vessels, ranging from small boats, fishing vessels, yachts to barges, ferries, cruise ships, LNG carriers and even large container ships or bulk carriers. It is the premier choice for all vessels.

Feature:

Technical Information:

• Specific Gravity：0.98
• Construction：12×12
• Melting Point：280°F (140°C)
• Critical Temp：150°F (65°C)
• Elongation At 30% Break：3.2%
• Water Absorption：0%

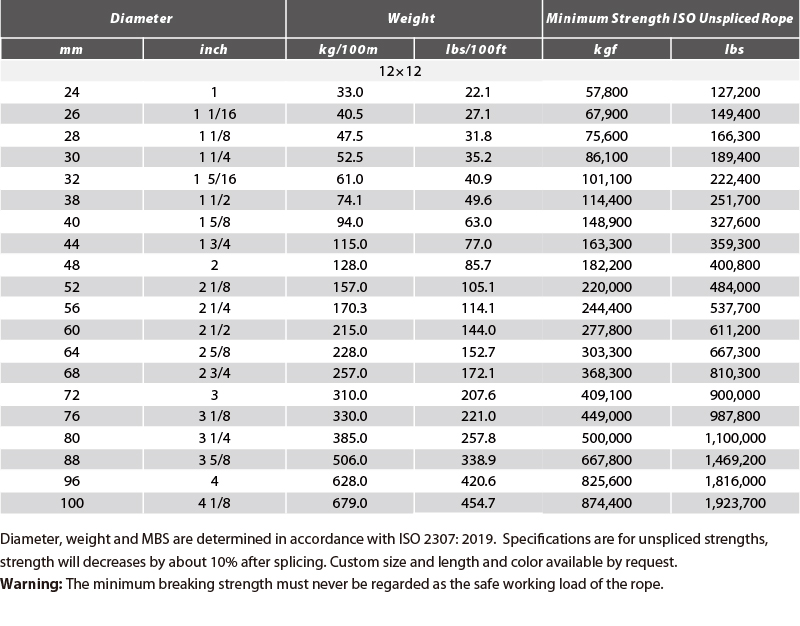

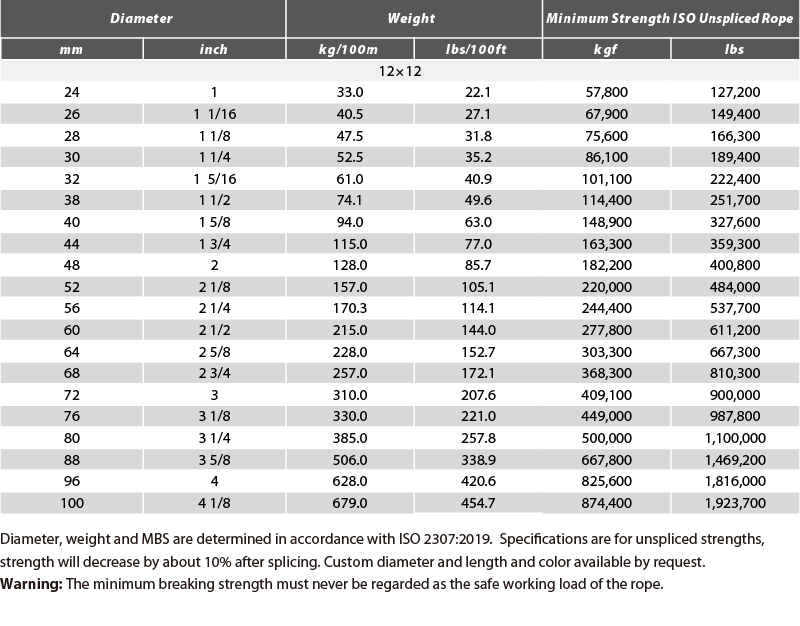

Specification:

Application:

OPTIMA™ 5 winch rope finds its application in various industries, including:
Mining: OPTIMA™ 5 excels in mining operations, providing reliable performance and robust strength for demanding lifting and hauling tasks.
Lifting Control: With its exceptional strength and low elongation, OPTIMA™ 5 is ideal for precise lifting control, ensuring safe and efficient handling of heavy loads.
Off-Road: OPTIMA™ 5 is a trusted companion in off-road applications, offering reliable winching power and durability for off-road vehicles and equipment.
Oil & Gas: In the oil and gas industry, OPTIMA™ 5 shines as a reliable winch rope, delivering high performance and resilience even in challenging offshore and onshore environments.
Mooring: OPTIMA™ 5 is a preferred choice for mooring applications due to its strength, low elongation, and excellent wear resistance, providing secure and dependable mooring solutions.

Why is it necessary to have twist identification

Twist identification of mooring lines is very important. Twist will be greatly reduced the strength of the rope, and makes the use of the rope have potential safety hazards. When the rope is twisted, the construction of the rope becomes uneven; According to the twist direction, half of the strands will bear more load while the other half will become loose, which will reduce the efficiency and strength of the rope.

Heat stretching process

In the normal manufacturing process of ropes, the fibers are not all of equal length, and some fibers only start to bear load when the shorter strands break. Due to the low elongation properties of UHMWPE fibers, this issue becomes particularly serious.

Heat stretching can fully extend the strand yarns and single fibers in the rope, increasing their orientation degree and maximum breaking strength. Multiple stretching can also eliminate uneven tension generated during manufacturing, allowing the irregularly arranged fibers in the rope to straighten out. As a result, the fiber structure gradually shrinks toward the axis center, reducing the rope's diameter.

OPTIMA™ 5 that have undergone heat stretching are also flexible and tough, which means that higher strength can be obtained at the same diameter or smaller diameter can be selected.

Coating finishing

The coating conditioner developed by ROPERS covers each fiber through a special process, providing external protection to the rope surface against wear, UV degradation, chemical exposure, and other environmental factors. Internally, it provides lubrication to reduce friction between fibers and strands. Ropes protected by this coating not only have extended lifetimes but also exhibit superior performance.
